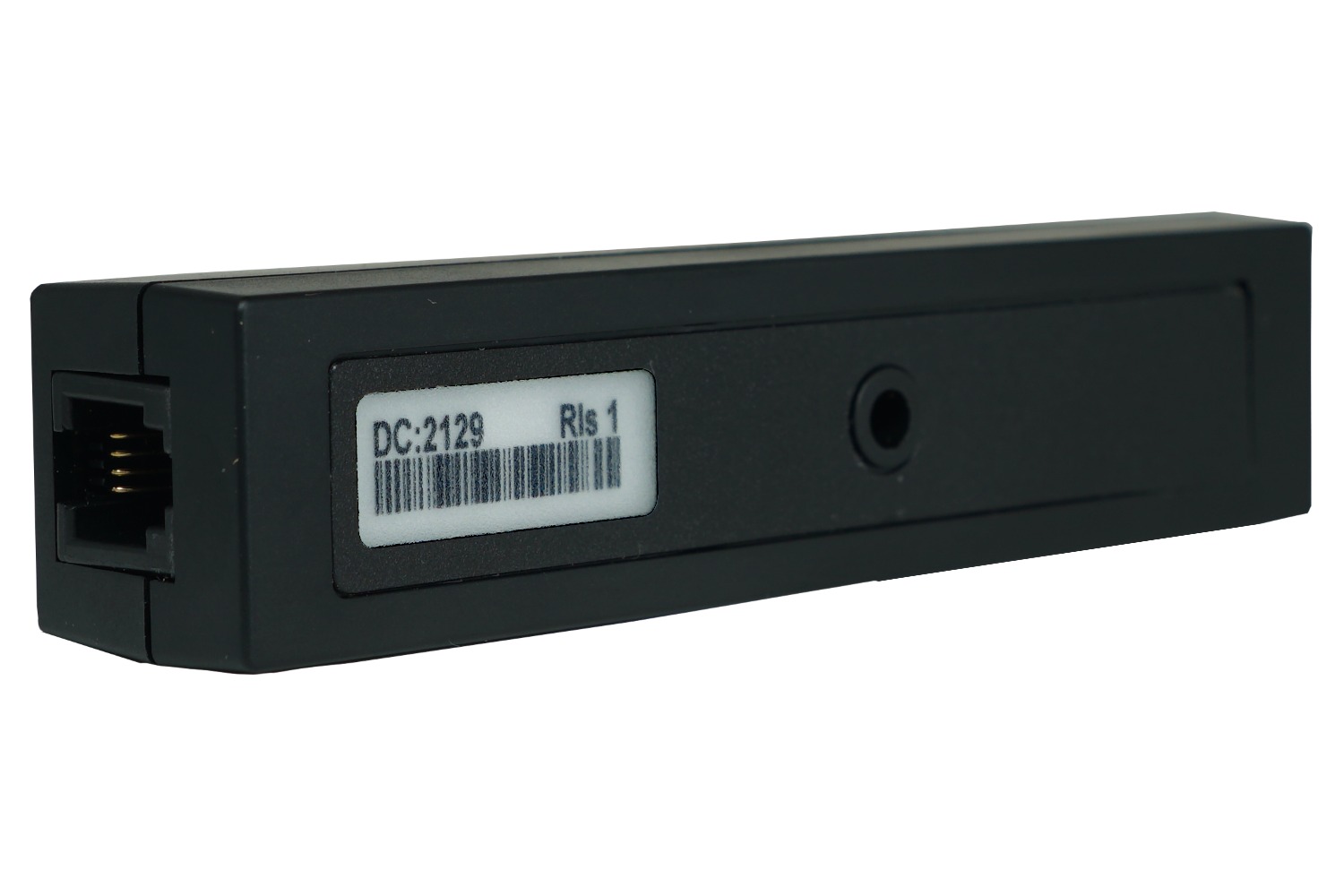

2507 Ring Detector

2507 Ring Detector

Algo Ring Detector – Enabling IP Notification without a SIP Registration

Enable Loud Ringing, Notification & Visual Alerting without a SIP Registration – The 2507 Ring Detector is designed to enable loud ringing, notification, and visual alerting directly from a compatible IP phone. The Ring Detector can detect when the phone is ringing and activate an Algo device with a smart relay input, such as a speaker or strobe light.

Once the 2507 Ring Detector has activated one Algo IP device, the IP device may activate Algo devices via an available relay or it may simultaneously multicast to other Algo IP endpoints on the network creating a scalable notification system directly from a single IP phone.

The advantage of the 2507 is no additional seat registration on the cloud / hosted telephone system is required for the ring detector and the Algo IP endpoint, thereby avoiding a recurring monthly cost.

$150.00 USD
SKU: 2507 Category:

Features

  • Avoids a recurring monthly cost: No additional seat registration on the cloud / hosted telephone system is required for the ring detector and the Algo IP endpoint.
  • Designed to enable loud ringing, notification, and visual alerting directly from a compatible IP phone.
  • Ideal For Microsoft Teams Environments.

Description

.

The 2507 Ring Detector is designed to enable loud ringing, notification, and visual alerting directly from a compatible SIP phone. The Ring Detector can detect when the phone is ringing and activate an Algo device with a smart relay input, such as an Algo 8180 IP Audio Alerter or an Algo 8138 IP Color Visual Alerter.



Algo 2507 - Ring Detector for Loud Ringing and Visual Alerting



.

With an Algo IP speaker such as the 8180 SIP Audio Alerter or outdoor rated 8186 SIP Horn Speaker, loud ringing in noisy or outdoor locations will avoid missed telephone calls. In very high noise or noise-sensitive environments, the 8128 SIP Strobe Light can be used with the 2507 Ring Detector.



Algo 2507 - Multicast Capable



Ideal For Microsoft Teams Environments

As MS Teams is one of the few platforms that does not natively support SIP without additional equipment many organizations deploying MS Teams may run into unexpected challenges when looking for loud ringing or visual alerting solutions. Fortunately, organizations deploying IP phones with suitable headset jacks may take advantage of the Algo 2507 Ring Detector in conjunction with an Algo speaker or strobe light to improve notification without needing a SIP registration.

For further details, please refer to the 2507 Installation Guide.

Specifications

Power
Power is supplied by the host Algo IP Endpoint
Connections
Telephone HeadsetRJ9 4P4C jack (6′ 2m handset cord included)
Host Algo IP EndpointTwo position terminal block (20′ 6m UTP cable included) Polarity independent connection
Maximum Cable LengthHeadset cable – 6′ 2m recommended 12′ 4m maximum
Twisted pair connection to IP endpoint – 100′ 30m maximum 24 AWG
Audio Ring Detection
Input impedance600 Ohm, balanced and transformer isolated
Detection Sensitivity25 mVrms – 500 mVrms (adjustable)
Maximum Input Voltage1.0 Vrms
LEDActive blue when ring audio exceeds detection sensitivity
Environmental & Mechanical
HousingPlastic 94V0 rated
Environmental32 to 104 deg F (0 to + 40 degC); 10-95% RH non-condensing. Dry indoor locations only.
MountingOptional – single mounting screw provided
Dimensions3.75” x 0.84“ x 0.81” (9.5cm x 2.1cm x 2.1cm)
Product Weight1 lb
Compatibility
TelephonesPoly (VVX series, CCX series)
Yealink (T55A, T56A, T58A, MP54, MP56, MP58)
Algo IP EndpointsSmart Relay Input and FW 4.x or higher
8128 SIP Strobe Light
8138 SIP Multicolored Visual Alerter
8180 SIP Audio Alerter
8186 SIP Horn Speaker
8188 SIP Ceiling Speaker
8189 SIP Surface Mount Speaker
8198 IP PoE+ Ceiling Speaker
8196 IP PoE+ Horn Speaker
8301 Paging Adapter & Scheduler
Compliance
CE, RoHS 3, REACH

Applications

  • Noisy work environments: In busy or loud environments (e.g., manufacturing plant, office), it can be challenging to hear the ringing of a phone, leading to missed or delayed calls. The 2507 Ring Detector solves this problem by offering a ring amplification solution. The device connects to a compatible IP phone and an Algo IP Endpoint, such as the Algo 8180 IP Audio Alerter or the Algo 8128 IP Visual Alerter. When the phone rings, the 2507 activates the Algo IP endpoint to amplify the ring event. The device may activate either an audible or visual alert, making it easier for employees to be alerted to incoming calls, even in noisy environments.
  • Limited notification options: Phones often rely solely on auditory alerts for call notifications, which may not be sufficient in certain situations. The 2507 Ring Detector addresses this limitation by providing visual alerting capabilities. By connecting it to compatible Algo devices with smart relay inputs, visual indicators such as flashing lights or customizable visual alerts can be activated, enhancing call awareness for individuals who may have difficulty hearing or who work in environments with high ambient noise.
  • Large or spread-out areas: In environments where you need to move around or cover a significant distance, such as warehouses, retail stores, or educational institutions, the ringing of a phone may not reach you if you are far away from your desk or located in a different part of the premises. Having a separate notification device can ensure that you are alerted to incoming calls regardless of your location.
